Operators

Every Business Process requires an Operator. This operator defines its behaviour and specifies how its very own state is going to be calculated.

AND

The AND operator selects the WORST state of its child nodes.

OR

The OR operator selects the BEST state of its child nodes.

DEGRADED

The DEGRADED operator behaves like an AND, but if the resulting state is CRITICAL it transforms it into a WARNING. Refer to Fig. 137 for the case-by-case analysis of the statuses.

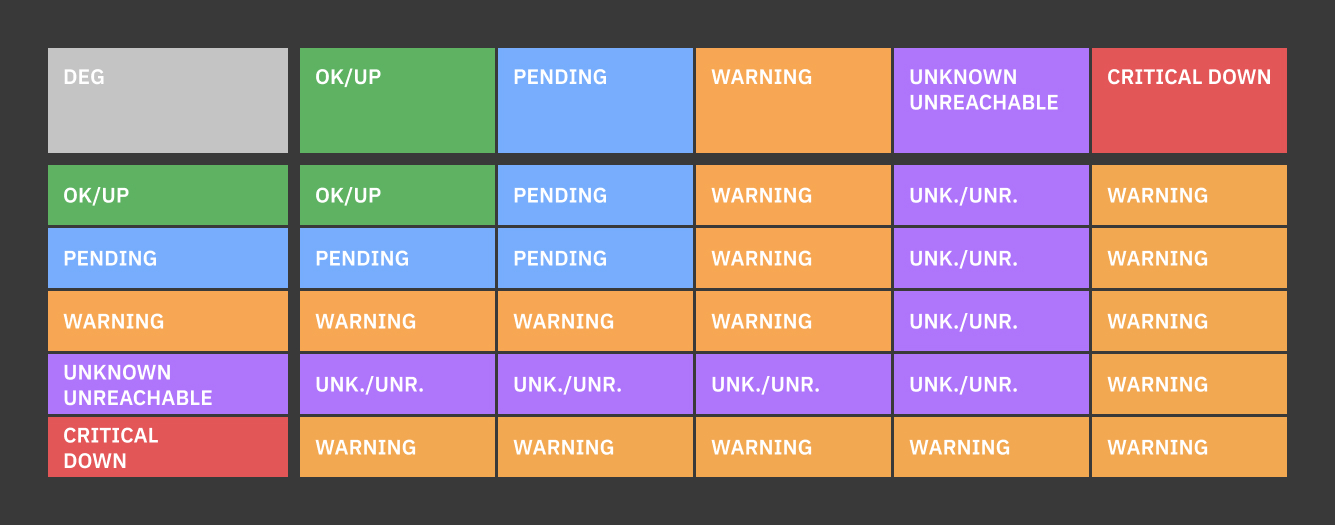

Fig. 137 All possible status outcomes when applying the DEGRADED operator.

MIN

The MIN operator selects the WORST state out of the BEST n child node states.
