Single Node Upgrade from 4.43 to 4.44¶

This guide will lead you through the steps specific for upgrading a NetEye Single Node installation from version 4.43 to 4.44.

Upgrading a NetEye Single Node takes a nontrivial amount of time. Granted the environment connectivity is seamless, the upgrade procedure may take up to 30 minutes.

Warning

Remember that you must upgrade sequentially without skipping versions, therefore an upgrade to 4.44 is possible only from 4.43; for example, if you have version 4.27, you must first upgrade to the 4.28, then 4.29, and so on.

Breaking Changes¶

Icinga2 zones and endpoints¶

From NetEye 4.44 all zones and endpoints configurations of Icinga2 will be managed through the Director instead of templating configurations of the file system, to allow easier management, updates and a future-proof procedure.

Existing endpoints and zones created automatically by NetEye need to be migrated, with the dedicated command, before the upgrade to NetEye 4.45. For more information, please refer to the Additional tasks section.

Elastic Stack upgrade to 9.0.5¶

In NetEye 4.44, Elastic Stack upgrades from version 8.18.3 to 9.0.5. To ensure compatibility, review the official breaking changes linked below:

Here are highlights of the breaking changes in this version:

Kibana¶

Access to Kibana’s internal APIs is blocked. Internal APIs are no longer accessible externally. More details here .

Logstash¶

Elastic 9 removes deprecated SSL settings in some Logstash plugins and replaces them with updated settings. If your plugin configuration contains any obsolete options, the plugin may fail to start. To avoid problems during the upgrade, please rename deprecated settings in your Logstash pipelines to use the new names, which are valid also in version 8.18. Here are some examples of how to address deprecated settings:

BEFORE:

input {
  beats {
      port => "${INPUT_BEATS_PORT:5044}"
      client_inactivity_timeout => 300
      ssl => true
      ssl_certificate_authorities => "${LS_SETTINGS_DIR}/certs/root-ca.crt"
      ssl_certificate => "${LS_SETTINGS_DIR}/certs/logstash-server.crt.pem"
      ssl_key => "${LS_SETTINGS_DIR}/certs/private/logstash-server.key"
      ssl_verify_mode => "force_peer"
      enrich => "ssl_peer_metadata"
  }
}

AFTER:

input {
  beats {
      port => "${INPUT_BEATS_PORT:5044}"
      client_inactivity_timeout => 300
      ssl_enabled => true
      ssl_certificate_authorities => "${LS_SETTINGS_DIR}/certs/root-ca.crt"
      ssl_certificate => "${LS_SETTINGS_DIR}/certs/logstash-server.crt.pem"
      ssl_key => "${LS_SETTINGS_DIR}/certs/private/logstash-server.key"
      ssl_client_authentication => "required"
      enrich => "ssl_peer_metadata"
  }
}

Notice how in the example above we have a beats input, where the deprecated settings ssl and ssl_enabled were replaced by the new settings ssl_verify_mode and ssl_client_authentication respectively.

For more details, check out official documentation.

External plugins that you installed manually may also cause breaking changes during the NetEye upgrade process. During a NetEye upgrade, all Logstash plugins are automatically updated to their latest available versions, which is why it’s important to check for any breaking changes that might affect your configuration.

To list manually installed plugins, run the command python3 /usr/share/neteye/logstash/scripts/configurator/logstash_plugin_manager.py additional-plugins-installed. Then, for each plugin, visit plugins’s site to check if there are newer versions available compared to your currently installed version, and review the changelog or documentation for any breaking changes between versions.

Example: For the plugin linked here: Extractnumbers filter plugin, check the plugin’s documentation to compare your current version with the latest available version and apply any necessary configuration changes to accommodate breaking changes.

Elastic Agent¶

Support of Elastic Agents version 7 is dropped. If Logstash receives logs from Elastic Agent version 7, it will discard them. Update all Agents to version >= 8.18 before upgrading NetEye. Refer to the official documentation for supported Agents by version.

Beats¶

Support of Beats version 7 is dropped. If Logstash receives logs from Beats version 7, it will discard them. Update all Beats to version >= 8.18 before upgrading NetEye. Refer to the official documentation for supported Beats by version.
The Log input of Filebeat is deprecated. If you are using the Log input of Filebeat, please migrate it to Filestram input before upgrading Filebeat to version 9 . Follow the official migration guide for details.

Groups User Backend and Groups in Access Control and Roles¶

From NetEye 4.44, the Full Groups Path feature in Keycloak will be enabled by default. This has an impact on the Access Control and Roles configuration in NetEye, namely on the Group field. Here, all groups must be specified with their full path, e.g. /icingaadmins instead of just icingaadmins. An automatic procedure will be executed during the upgrade to update all existing roles and access control rules to use the full group path. Also, a prerequisite check will ensure that only the keycloak-master User Group backend is configured in the Access Control Backends section. If multiple backends are configured, the upgrade will be aborted, and you will be required to remove all other backends except keycloak-master. To learn more on this feature, please refer to the Authorization section of this documentation.

CSP Header¶

Since version 4.42, having the Content-Security-Policy (CSP) header enabled has been a security prerequisite. Building on this, version 4.44 completes the transition to a more secure-by-default posture by making this setting active and can no longer be disabled.

Prerequisites¶

Before starting the upgrade, carefully read the latest release notes on NetEye’s blog and check the features that will change or be deprecated.

All NetEye packages installed on a currently running version must be updated according to the update procedure prior to running the upgrade.
NetEye must be up and running in a healthy state.
Disk Space required:
- 3GB for / and /var
- 150MB for /boot
If the NetEye Elastic Stack module is installed:
1. The rubygems.org domain should be reachable by the NetEye Master only during the update/upgrade procedure. This domain is needed to update additional Logstash plugins and thus is required only if you manually installed any Logstash plugin that is not present by default.
2. The deprecated SSL settings in the Logstash plugins must be updated. Once the changes have been applied, you can verify their correctness by running the command neteye node check-upgrade-prerequisites on the node where the Logstash service is running.

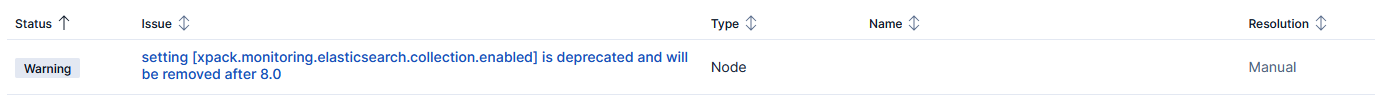

3. Ensure that there are no critical issues for Elasticsearch and Kibana in the Kibana Upgrade assistant. Go to : Log Analytics > Stack Management > Upgrade Assistant . The example below shows 1956 critical issues that must be resolved before proceeding with the upgrade.
1. Confirm that you reviewed the Elastic breaking changes, by enabling the dedicated flag in the NetEye UI that you can find on URL <neteye_url>/neteye/kibana/config

NetworkManager Migration¶

Please, make sure that you have migrated all of your nodes to use the NetworkManager as described in the Additional Upgrade Tasks section.

1. Run the Upgrade¶

To perform the upgrade, run from the command line the following command:

neteye# (nohup neteye upgrade &) && tail --retry -f nohup.out

After the command was executed, the output will inform if the upgrade was successful or not:

In case of successful upgrade you might need to restart NetEye to properly apply the upgrades. If the reboot is not needed, please skip the next step.
In case the command fails refer to the troubleshooting section.

2. Reboot¶

Restart NetEye to apply the upgrades correctly.

neteye# neteye node reboot

3. Additional Tasks¶

Migration of Icinga2 zones and endpoints to the Director¶

Before the upgrade to NetEye 4.45, it is necessary to migrate existing Icinga2 zones and endpoints configurations created automatically by NetEye in previous versions, to be managed through the Director.

To achieve this, a dedicated command is provided to facilitate the migration process.

You can so run, from one node of your NetEye environment the following command to perform the migration:

neteye# neteye icinga zones-endpoints migrate

Warning

Please note that the command will automatically perform a Director deploy, so ensure that when launched the current configuration is consistent and ready for deployment.

Note

The command will migrate only existing zones and endpoints that were created automatically by NetEye in previous versions, such as the ones created during satellites configurations. It will so not affect any manually created zones and endpoints.

Note

Until the migration is completed, the configuration for existing satellites can be still generated but will not include changes performed on the icinga2 zone, if altered. To apply changes to the icinga2 zone, you must complete the migration process first.

For more information about the command, please refer to neteye icinga zones-endpoints migrate.
